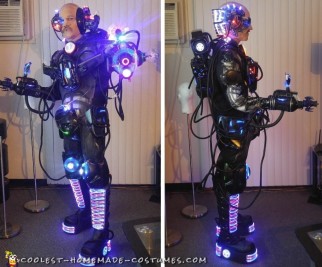

Awesome DIY Cyborg Costume – Locutus of Borg ( MODDED v6.0 )

Hello, My name is Kenny, and I’ve always been a huge fan of technology! I’ve always been good with wires. I have thousands of random wires I’ve collected throughout the years which definitely came in quite handy with this cyborg costume.

Star Trek The Next Generation movie series has a race of cybernetic organisms call Borg. They assimilate  humans or other species into their collective to make them into Borg. Although the Borg would be my inspiration, I wanted to create a similar idea of how they look in the movies, but yet create my own original, and one of a kind cyborg costume design that is different and unique.

I’ve spent well over 300 hours, and over a thousand dollars on this cyborg costume. I have hot glue burns, solder burns, razor cuts, drill bit cuts, and super glue still on my fingers. Overall, I’m pretty happy with how it turned out!

One of my favorite features in this cyborg costume (besides the laser:P), is that It has a built in drink holster in the crotch area with a straw that comes up through the mask so I can enjoy a cocktail with hands free! I also made a little door hatch that allows you to go to the bathroom without having to take the whole costume off!

Video of my Cyborg Costume

THIS VIDEO Demonstrates how the Laser/Blower/Smoker works on the side of the face:

Here is a list of some more details about the cyborg costume I built, and designed.

Hope you enjoy! Thanks for looking!

Cyborg Costume Main Features

226 LED Lights
4 1/2″ Heel lift (makes me 6’4″)
(13) Different Real Moving Robotics!
Uses (2) LG G3 Smartphones (Both Magnetic Mounted)
Built-in Wireless Bluetooth
Voice Changer Ready (haven’t mounted the microphone yet)
Smoke Effects!

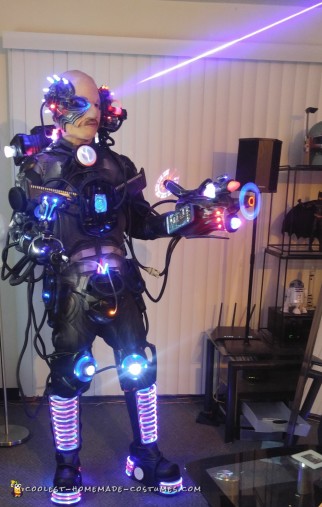

Real 1 Watt Laser!
100 Watts of Powerful Sound!
(4) Speakers!
(13) USB Cables
(5) Plasma Electricity plates
(1) Plasma Electricity ball

POWER::::

– iSound rechargable 16,000mAh – 5v USB (4.8amp max)
– BTOOP rechargable 15,000mAh – 12V (10 amps max) + 5v USB/ (2.0 amp max)
– Black rechargable 8,000mAh – 5V USB (3.1 amp max)
– (3x) Innergie rechargable 6,800mAh – 5v USB (4.2 amp max) (12.6 amps total)
– (2x) LG G3 Batteries 3,000mAh each
– Anker 1500mAh
– (8x) AAA Batteries

TOTAL: (OVER 70,000Mah all together) (about 22 Amps @ 5v / about 10 Amps @12v)

SOUND::::

– LG G3 (Attached to gun “left hand” Controls sound effects)
– Boss 100 Watt RMS 12v car amplifier (BIG SOUND)
– Anker Bluetooth Receiver/Transceiver
– (2x) 1.5″ Micro Tweeters speakers PAIR 200 Watts RMS (Installed inside gun “left hand”)
– Panasonic 2-way Full range Speaker 125 watts (installed on upper back)
– Built in 2″ full range speaker inside left hand (secondary gun sound effects activated with trigger inside)

CONTROLS::::

(INSIDE LEFT HAND) (3 buttons)
– Claw rotate left/right
– scope Up/Down
(INSIDE RIGHT HAND) (5 buttons)
– Eye piece Open/Close
– Front Chest Open/Close
– Laser Up/Down (powered on when up)
– Blower Fan On/Off
– Vape Smoke effects (Hold to activate)

_______________________________
LIST OF ITEMS ADDED::::
_______________________________

MASK::::

Connections— (4 USB cables, 1 button, 1 VGA Cable, 1 RCA Cable)
(1x) Locutus of Borg Mask (Main Shell)
(1x) Blue 1 watt laser (5v)
(2x) Motorized Robotic paddle (5v) (one for eye, one for laser)
(1x) Kanger Sub Ohm Clearomizer
(1x) 5v to 12v step-up module
(1x) Blower fan from Sony TV
(3x) Small pieces from toy car
(1x) body of a beard trimmer
(1x) 510 Battery tread holster
(12x) BLUE LED’s (5v)
(12x) RED LED’s (5v)
(1x) Amber/orange LED
(3x) UV LED’s (5v)

(3x) WHITE LED’s (5v) (Blinking)
(2x) Chrome panels from Boots
(1x) White Tube from plastic water bottle
(2x) E-liquid bottle
(1x) Mouthpiece from snorkel
(6x) Plastic screw sockets (used on mask as blue glow)
(1x) Spring
(1x) Clear Headphone ear bud
(1x) left eye from sunglasses (right eye)
(3x) Grapefruit Container lids (inside)
(1x) Steel round Bracket from Speaker a stand (inside)
(3x) E-cig mouthpiece covers
(1x) Blue spiked ball (organic material around eye piece)

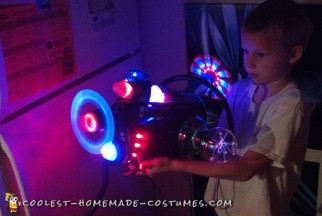

LEFT HAND GUN::::

Connections— (1 USB Cable, 4 Buttons & Switches, 1 VGA Cable)
(1x) Tropicana orange juice Bottle (Main Shell)
(1x) Small Toy Gun
(1x) LG G3 Smartphone with Magnet (Controls sound effects)
(1x) Plasma Ball (5v)
(1x) 12″ RED Programmed LED Strip (5V)
(4x) Spinning Motors (5v)
(13x) RED LED’s (5v)
(10x) BLUE LED’s (5v)
(2x) GREEN LED’s (5v)
(1x) YELLOW LED (5v)
(1x) Round Steel Ball (for mounting magnetic LG G3 Phone)
(1x) Plastic kitchen spoon shaft (for holstering gun)
(3x) Flat metal brackets
(1x) ON/OFF Switch for Gun sound

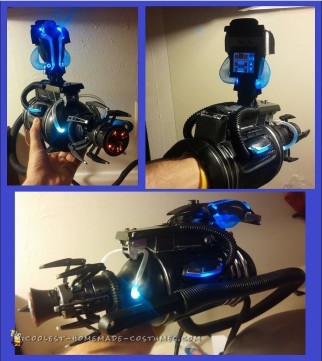

RIGHT HAND SEEKER::::

Connections— (1 USB Cable, 3 Buttons and switches)
(1x) V8 Juice bottle (Main Shell)
(1x) Motorized turning Hexbug Spider (5v) (used for claw)
(1x) Ipod Nano video player (5v) (assimilation display)
(1x) Motorized Robotic Paddle (5v) (Holds iPod nano)
(5x) RED LED’s (5v & 3v)
(6x) BLUE LED’s (5v)
(2x) WHITE LED’s Blinking (5v)
(1x) Spring
(2x) Tron action figure thighs
(1x) Tron action figure chest
(1x) HTC phone battery cover
(1x) Plastic Remote control car part (engine chamber)
(1x) Toy car wheel
(2x) Electric beard trimmer plates
(1x) Clear air Tubing
(1x) Plastic kitchen spoon shaft (for holstering gun)
(1x) Random Round plastic piece (tip of claw)

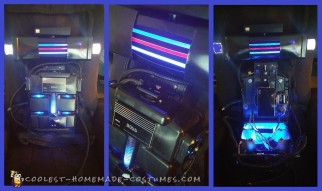

CHEST::::

Connections— (1 USB Cable, 1 Button, 2 RCA Cables)
(1x) Toy jet spaceship (Main shell)
(1x) Detachable LG G3 Smartphone that attaches via Magnet socket (Has interactive live wallpaper with symbol in center)
(2x) Motorized Robotic paddles (5v)
(1x) Blue Plasma Plate (3v)
(3x) RED LED’s
(4x) BLUE LED’s
(3x) Red 12″ programmed LED strips (96 LED’s) ( (5v)
(2x) Toy Plasic bowling pins bottoms
(2x) Chinese Takeout plastic container
(2x) Metal Pisces from Computer case
(1x) Steel Socket (for connecting Magnetic Smartphones)

BACK/SHOULDERS::::

Connections— (1 USB Cable, 9 USB Ports, 3 RCA Cables, 1 power wire “12v”)
(1x) Plastic silverware tray (main shell)
(1x) Detachable iSound 16,000mAh Power Bank (Magnet Mount Installed)
(1x) Steel Socket (for connecting Magnetic iSound Power bank)
(1x) Panasonic 2-way Full range Speaker (125 watts)
(19x) BLUE LED’s
(1x) GREEN LED
(1x) RED LED
(1x) Bluray Disc
(2x) USB Splitters (4-way)
(1x) White plastic Bottom of Dish rack
(1x) Printer hinge part
(1x) cylinder toy base
(2x) Race car track round base
(2x) Interior parts of remote control cars
(1x) Round Plastic piece
(1x) light up barrel from toy gun
(1x) Battery box from remote control car

CROTCH::::

Connections— (1 USB Cable)
(1x) Gi-Joe Duke Helmet (Main Shell)
(2x) Blue LED’s
(1x) Red LED
(1x) Multicolor LED
(1x) Red 32oz Plastic cup with screwable lid, and plastic straw
(1x) Clear Plastic cup holster
(1x) Tropicana Orage juice lid
(4x) Clear Liquid Tubing

HIPS::::

Connections— (1 USB Cable)
(2x) laundry detergent Bottles (Main Shell)
(2x) 5″ Glowing Fans (5v)
(8x) Blue LED’s

KNEES::::

Connections— (1 USB Cable)
(2x) laundry detergent Bottles (Main Shell) (Also used for left and right hand holsters)
(6x) White LED’s (3v)
(8x) Blue LED’s (5v)

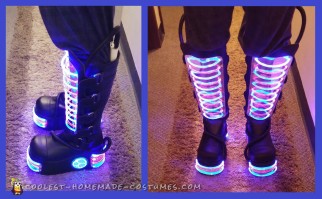

BOOTS::::

Connections— (2 USB Cables)
(1x) Demonia Techno-854UV Boots (Pair) (Main Shell)
(4x) Plasma Plates (3v) (Blue)
(32x) Red LED’s
(40x) Blue LED’s
(18x) Glowing Fiber Optics

——————–
BUILDING MATERIALS
——————–

LOTS OF Different types of WIRES
Solder and flux
Side Glowing Fiber optics (3mm & 6mm)
Electrical Tape
Duck Tape
Black cable tubing
Spray Paint (Mostly Black, and Neon colors)
Hand paints
Nuts
Bolts
Washers
Screws
Flat, and “L” Shaped Brackets & Fasteners
Hot Glue
Super Glue
Rubber Bands
Etc….

——————–
TOOLS
——————–

Solder Iron
Hot Glue gun (low heat, and high heat)
Multimeter
USB Tester (Capacity Current Voltage)
Circuit board holder
Clamps
Drill
Hammer
Clamps
Paint brushes
Screw Drivers
Socet wrench
Caliper
Saws
tape measure
Credit cards (for scraping)
Ruler
Magnifying glass
Plyers
Tweezers
wire strippers
Cutters
Scissors
Xacto knives
Razor blades
Hack saw
Etc….

SPECIFICATIONS:::

AMPS USED
___________________________________________________

5v Seeker (Right Hand)
.14 (only on)
.62 amp (with scope activated)

5v Destroyer (Left Hand)
.58 amps (only on)
1.02 amps (Pulling trigger)

5v AI (Chest)
.12 amps (Only on)
1.00 amps (Chest Open)

5v Side Fans & Drink Holster
.40 amps (Only on)

5v Rear Power Supply
.21 amps (Only on)

5v Head
.18 amps (eye open)
.60 amps (eye closed)

———– Total 1.63 amps (Only on mode)
———– Total 3.85 amps (Max possible used)

—————–
—————–
1 watt Blue laser (Head)
.744 amps

claw motors
.570 amps (max open)

Vapor clearomizer
1.53 amps
(vape pump) (5v to 12v output)
.5  amps
laser Fan smoke spreader
.580 amps @ 12v

—————–
—————–
Boot Plasma panels < 2 On Left boot, 2 on right boot(4 Total)
.106 amps (each)

—————–
Power Banks::::
—————–

iSound: USB (2.4 amps) 16,000mah

Chinese Brand: USB (5V 2.1a / 5v 1.0a) 8,000mah

BTOOP: USB (2 amps) 15,000mah
12v (10 amps)
19v (3.5 amps)

Inergie: USB (4.2 amps) 6,800mah
Inergie: USB (4.2 amps) 6,800mah
